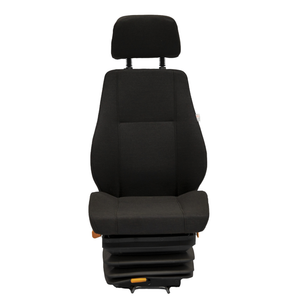

TRUCK PNEUMATIC AIR SUSPENSION SEAT TS 022

TRUCK PNEUMATIC AIR SUSPENSION SEAT TS 022

TS 002
  • Unit price per


Description

Super Comfy Seat, Built to last. Our Seats are Built with German Contitech Air Bag and Swedish Valves which will give you the most Comfortable ride in your Truck

Horizontal adjustment: stroke 200mm (10mm×20)
Weight adjustment: Automated up to 130kg (40~130kg), air pressure 0.3~0.7Mpa (air pressure of supply 0.7~0.9Mpa)
Pneumatic suspension function: stroke ±40mm
Height / rake adjustment: adjust range ±65mm, rake adjustable ±14°;
Backrest adjustment: adjust range 80°+41°
Head restraint adjustment: adjust range 75mm (25mm×3)
Seat size(length × height × width) 560mm×1050mm×485mm
Seat cushion height(work state)225mm, seat cushion width 485mm, seat cushion depth 465mm
Backrest height 630mm, backrest width 480mm
Connect size(L/R×F/B)216mm×295.5m

Suit: Isuzu, Hino, Mitsubishi Fuso, Nissan UD, Iveco, Volvo and More
*May Require Bracket for Fitment

Weight 37 kg
Dimensions 60 × 58 × 76 cm
