SAF-HOLLAND LANDING GEAR - HOLLAND ATLAS 55

SAF-HOLLAND LANDING GEAR

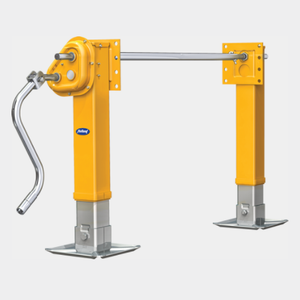

HOLLAND ATLAS 55

The new benchmark for lifting performance.

LIFT CAPACITY: 55,000 lbs. at 100 ft.-lbs. input torque
ULTIMATE LOAD CAPACITY: 170,000 lbs.
SIDE-LOAD CAPACITY: 30,000 lbs.
GEAR RATIOS vs. TURNS PER INCH: Low Gear = 38.7, High Gear = 4.5

The HOLLAND Atlas 55 landing gear merges proven engineering technology with quality and durability to create a new standard in landing gear performance. From the smooth shifting and reliability of the patented Constant Mesh gearbox design, to the durability and toughness of the exclusive FloatingNut with Twin Bulkhead construction; the Atlas 55 offers a landing gear that was built to carry on the HOLLAND name and tradition of trouble-free performance and exceptional value for years to come.

Rugged durability and easy operation, including:
• constant mesh gearbox design for trouble-free shifting
• exceeds all AAR M-931 and all TTMA RP-4 performance specifications
• high-strength ductile iron gears
• standard 5-year and optional 10-year performance guarantee available
• reduced weight with increased structural integrity

Exclusive FloatingNut Design

The FloatingNut protects the elevating screw and threads from excessive side loading caused by dock-walk; damage which can cause poor cranking performance or binding. Unique twin-bulkheads, above and below the FloatingNut, further increase structural resistance to side-load forces when landing legs are fully extended.

BLACK ARMOUR® Metal Treatment

The BLACK ARMOUR® metal protection process chemically bonds with metal to form a protective skin that is impervious to water and anti-icing chemicals. BLACK ARMOUR® is paint compatible without pre-sanding. If scratched, BLACK ARMOUR® inhibits the spread of creep corrosion.

This eco-friendly metal treatment provides remarkable protection without the added weight and cost of galvanization.

· Guards against environmental factors, e.g. moisture, stone chipping and salt
· No rust penetration
· Long-lasting and reliable retention of value



NoLube

NoLube landing gear provide a sealed system, resulting in maximum component lubrication with no need for additional grease for 10 years.

HOLLAND NoLube, low maintenance technology is now available on all landing gear models. While the NoLube technology does not completely eliminate preventative maintenance, it provides a sealed system resulting in maximum component lubrication with no need for additional grease for 10 years. That saves grease and eliminates expensive, time-consuming maintenance delays.

Crank Hangers

Optional crank hangers are available for your landing gear.

Hand Cranks

Hand cranks are available for your landing gear.

Heavy Duty Sand Shoe

For increased durability in all situations, we offer a heavy duty version of our sand shoe.

Sand Shoe

Our optional sand shoe for your landing gear is useful in keeping a trailer from sinking too deeply in soft terrain.

Shafts and Braces

We have optional shafts and braces for all situations.
