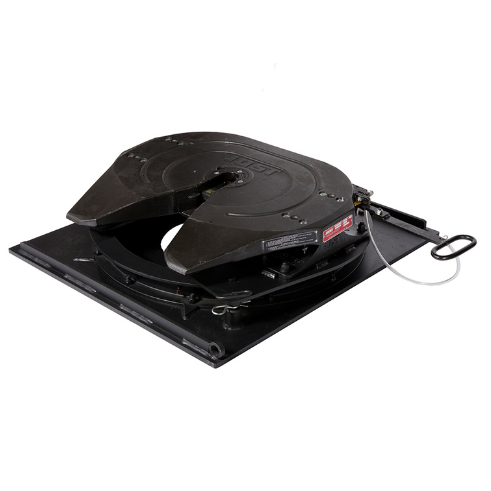

JOST FIFTH WHEEL DR 37 C-Z (CAST TOP)
JOST FIFTH WHEEL DR 37 C-Z (CAST TOP)
Description:
Double row, stabilised.
Applications:
- Tanker
- General freight
Specifications:
- 20,000 kg imposed load
- Gross Combination Weight 135,000 kg
- Weight 405 kg (with 12mm base plate)
CRN/ Rating:
24842 D-Value 190 kN
Features:
- Twin lockouts.
- Flush bolt heads on mounting plate in chassis mounting zone. Cast type unit equipped with external king pin grease point for additional lubrication to the jaw.
- Wearing ring easily removed from above on JSK 37 C-Z fifth wheel.
- Mounting must be carried out in accordance with our instructions.
